Installing a rugged 92mm fan screen such as the GardTec AFM-92B is a practical way to prevent airborne dust, lint, and debris from accumulating inside sensitive electronic housings. In compact enclosures, 92mm axial fans supply focused airflow across compact power supplies, industrial controllers, and communications hardware. However, without adequate filtration, unconditioned air pulls dust into heatsinks and circuit boards, creating an insulating layer that traps heat and can lead to premature hardware failure.

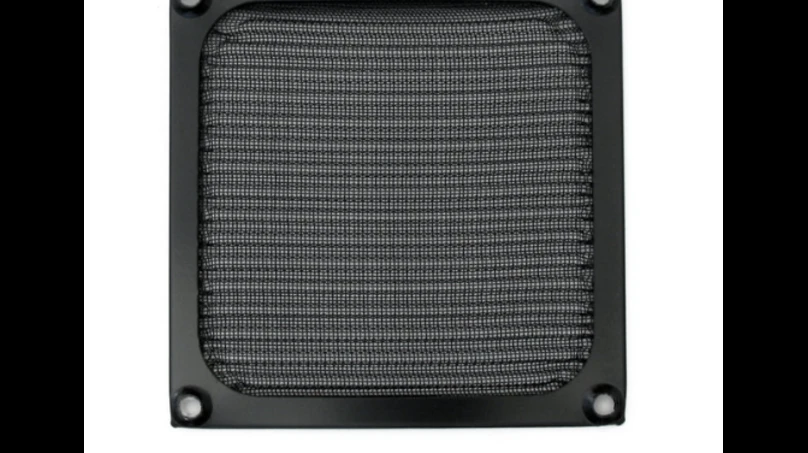

The AFM-92B filter assembly uses an all-aluminum frame and multi-layered screen assembly. This design provides durable mechanical protection and filtration while fitting the standard 92mm fan footprint.

Structural Design of the AFM-92B Aluminum Unit

Unlike basic plastic filter frames that can warp or become brittle when exposed to continuous heat, the AFM-92B uses an all-metal construction:

• Layered Corrugated Filter Media: The core filter element features corrugated, woven aluminum mesh. This design creates a tortuous airflow path that captures particulate matter while distributing intake air evenly across the fan face.

• Durable Black Electrodeposition Finish: The exterior frame is treated with a black electrodeposited coating that resists scratching, corrosion, and industrial fluids while matching dark enclosure panels.

• Integrated EMI/RFI Shielding: The conductive aluminum mesh also functions as an electromagnetic interference (EMI) and radio frequency interference (RFI) barrier, helping contain radiated noise and shielding internal components from external interference.

Balancing Airflow Delivery and Filtration Efficiency

Adding filtration to an air intake inevitably introduces some flow resistance. The AFM-92B balances dust retention with low static pressure loss:

• Lower Pressure Resistance: Woven corrugated aluminum allows air to pass with less resistance than dense open-cell foam pads, preserving usable CFM.

• Consistent Flow Distribution: The pleated mesh design helps smooth turbulent intake air, reducing blade flutter and minimizing air noise.

• Structural Rigidity Under Pressure: When high-speed fans pull air through the filter, flexible plastic or cloth media can bow inward and contact spinning fan hubs. The aluminum frame and mesh remain rigid under high static pressure.

Maintenance and Washable Filter Media

Unlike disposable filter pads that must be replaced regularly, the AFM-92B is fully washable and reusable:

1. Remove the Filter Unit: Unscrew the mounting hardware securing the AFM-92B to the 92mm fan flange.

2. Wash with Mild Cleaner: Submerge the aluminum assembly in warm water mixed with a mild, non-corrosive detergent or degreaser to dissolve trapped oil mist and dust.

3. Rinse and Dry: Rinse the unit thoroughly with clean water and blow it dry using clean compressed air, or let it air-dry completely before reinstalling.

4. Reinstall: Re-mount the clean filter onto the fan housing to restore original airflow and filtration performance without needing replacement parts.

Frequently Asked Questions (FAQ)

What are the mounting hole dimensions for this 92mm filter?

The AFM-92B features standard 82.5 mm (3.25 inches) center-to-center hole spacing, matching standard 92mm x 92mm cooling fans.

Does the aluminum screen help attenuate EMI noise?

Yes. Because it is built from conductive aluminum mesh, it helps preserve enclosure shielding effectiveness against electromagnetic and RF interference when grounded to the chassis.

Can the AFM-92B filter assembly be installed outdoors?

Yes. The electrodeposited aluminum construction resists moisture and corrosion far better than untreated steel or plastic assemblies exposed to sunlight.
