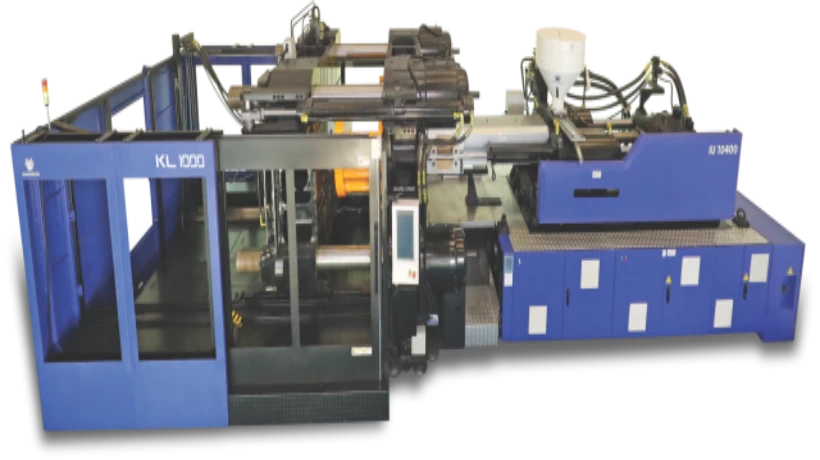

Injection Moulding Machine: A Complete Guide to Technology, Types, and Applications

In today’s manufacturing-driven world, the Injection Moulding Machine plays a vital role in producing high-quality plastic components with speed, precision, and consistency. From everyday household items to complex automotive and medical parts, this machine has transformed the way products are designed and manufactured. This article explores injection moulding machines in depth—how they work, their types, benefits, applications, and how to choose the right one for your business.

What Is an Injection Moulding Machine?

An Injection Moulding Machine is an industrial machine used to manufacture plastic parts by injecting molten plastic material into a mould. Once the material cools and solidifies, the mould opens to release a finished product with a precise shape and smooth surface.

This process is widely used because it enables mass production of identical parts while maintaining tight tolerances and minimal material waste. Whether it’s a small plastic cap or a large automotive panel, injection moulding machines can handle a wide range of product sizes and complexities.

How Does an Injection Moulding Machine Work?

The working principle of an injection moulding machine can be broken down into a few simple steps:

1. Material Feeding – Plastic granules or pellets are fed into the machine through a hopper.

2. Melting – The material is heated inside a barrel until it reaches a molten state.

3. Injection – A screw or plunger injects the molten plastic into a closed mould under high pressure.

4. Cooling – The plastic cools and solidifies inside the mould, taking its exact shape.

5. Ejection – The mould opens and ejector pins push the finished part out.

This cycle repeats continuously, making injection moulding ideal for high-volume production.

Main Components of an Injection Moulding Machine

An injection moulding machine consists of several key components that work together:

• Injection Unit – Responsible for melting and injecting the plastic material.

• Clamping Unit – Holds the mould securely closed during injection and cooling.

• Mould – A custom-designed tool that gives the final product its shape.

• Hydraulic or Electric System – Powers the movement of the screw, clamping unit, and ejectors.

• Control System – Allows operators to set parameters such as temperature, pressure, and cycle time.

Each component plays a critical role in ensuring consistent product quality and efficient operation.

Types of Injection Moulding Machines

Injection moulding machines are available in different types based on their drive system and application requirements.

1. Hydraulic Injection Moulding Machine

Hydraulic machines are the most traditional and widely used. They rely on hydraulic pumps to generate clamping and injection force.

Advantages:

• High clamping force

• Suitable for large and thick parts

• Durable and reliable

Limitations:

• Higher energy consumption

• More maintenance compared to newer technologies

2. Electric Injection Moulding Machine

Electric machines use servo motors instead of hydraulic systems, offering high precision and energy efficiency.

Advantages:

• Excellent accuracy and repeatability

• Lower energy usage

• Cleaner operation with less noise

Limitations:

• Higher initial investment

• Limited suitability for very large parts

3. Hybrid Injection Moulding Machine

Hybrid machines combine hydraulic power with electric control, delivering a balance of performance and efficiency.

Advantages:

• Improved energy efficiency

• Strong clamping force

• Versatile for various applications

Benefits of Using an Injection Moulding Machine

The popularity of injection moulding machines is driven by several key advantages:

• High Production Efficiency – Ideal for mass production with fast cycle times.

• Consistent Quality – Produces identical parts with minimal variation.

• Design Flexibility – Allows complex shapes, fine details, and integrated features.

• Material Versatility – Works with a wide range of thermoplastics and polymers.

• Low Waste – Excess material can often be recycled and reused.

These benefits make injection moulding one of the most cost-effective manufacturing processes available today.

Applications of Injection Moulding Machines

Injection moulding machines are used across multiple industries due to their adaptability and precision.

Automotive Industry

Used to manufacture dashboards, bumpers, interior trims, and under-the-hood components that require durability and consistency.

Consumer Goods

Common household products such as containers, toys, kitchenware, and electronic casings are produced using injection moulding machines.

Medical and Healthcare

Medical-grade injection moulding machines produce syringes, IV components, diagnostic devices, and disposable medical tools with high accuracy and hygiene standards.

Electronics

Injection moulding is widely used for producing connectors, housings, switches, and insulating components in electronic devices.

Packaging Industry

Caps, closures, bottles, and packaging containers are manufactured efficiently using injection moulding technology.

Factors to Consider When Choosing an Injection Moulding Machine

Selecting the right injection moulding machine is crucial for productivity and long-term success. Consider the following factors:

• Clamping Force Requirement – Depends on the size and complexity of the mould.

• Shot Size – Determines the maximum volume of molten plastic injected per cycle.

• Material Compatibility – Ensure the machine supports the plastic materials you plan to use.

• Energy Efficiency – Electric or hybrid machines can reduce operational costs.

• Automation Capability – Advanced machines support robotics and smart manufacturing systems.

Making the right choice can significantly improve production efficiency and reduce downtime.

Future Trends in Injection Moulding Machines

The injection moulding industry is evolving with advancements in automation, digital control, and sustainability. Modern machines are increasingly equipped with:

• Smart sensors for real-time monitoring

• AI-driven process optimization

• Energy-efficient motors and systems

• Compatibility with recycled and biodegradable plastics

These innovations are shaping the future of injection moulding, making it more sustainable, precise, and cost-effective.

Conclusion

The Injection Moulding Machine is an essential pillar of modern manufacturing, enabling the mass production of high-quality plastic components across diverse industries. With multiple machine types, advanced control systems, and growing automation capabilities, injection moulding continues to evolve alongside industrial demands.

Whether you are a manufacturer looking to scale production or a business exploring efficient manufacturing solutions, understanding injection moulding machines can help you make informed decisions and stay competitive in today’s fast-paced market.
